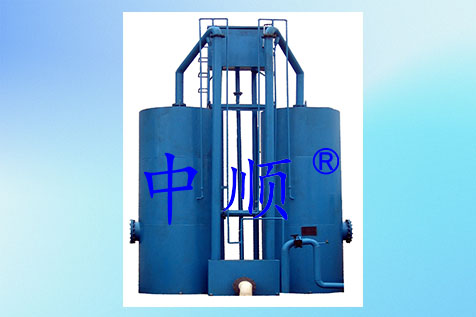

Gravity valveless filter large valveless water treatment equipment


    Gravity valveless filters are mainly used to remove suspended solids from water. It is widely used in various water treatment projects such as water source Water purification and circulating Water purification.

    This series of equipment has absorbed mature advanced technology both domestically and internationally, adopting hydraulic fully automatic control operation, simple operation, convenient maintenance, and no need for dedicated management.

Main technical parameters:

1. Operating parameters

Design filtration rate: 8-10 meters/period final head loss: 1.7 meters

Backwashing intensity: 14-15 liters/second · square meter

Flushing duration: 5-7 minutes Filter material: quartz sand

Cushion thickness: 200mm Filter layer thickness: 800mm

2. Water quality parameters

The inlet turbidity is less than 15 degrees, and the outlet turbidity is less than 3 degrees.

The inlet turbidity is less than 10 degrees, and the outlet turbidity is less than 2 degrees.

3. Water pressure

The inlet water pressure is required to be greater than or equal to 0.07MPa.

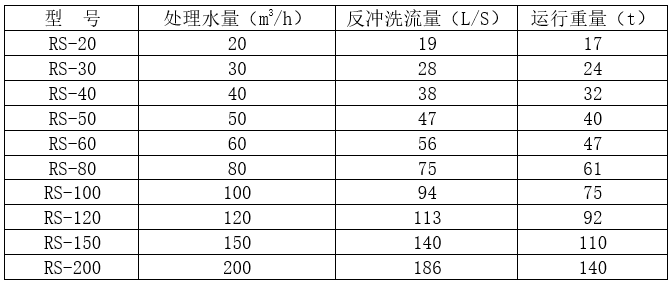

Equipment specifications:


Note: When the processing water volume is greater than 150m3/h, it needs to be composed of multiple filter tanks, which can be flexibly arranged according to specific conditions.

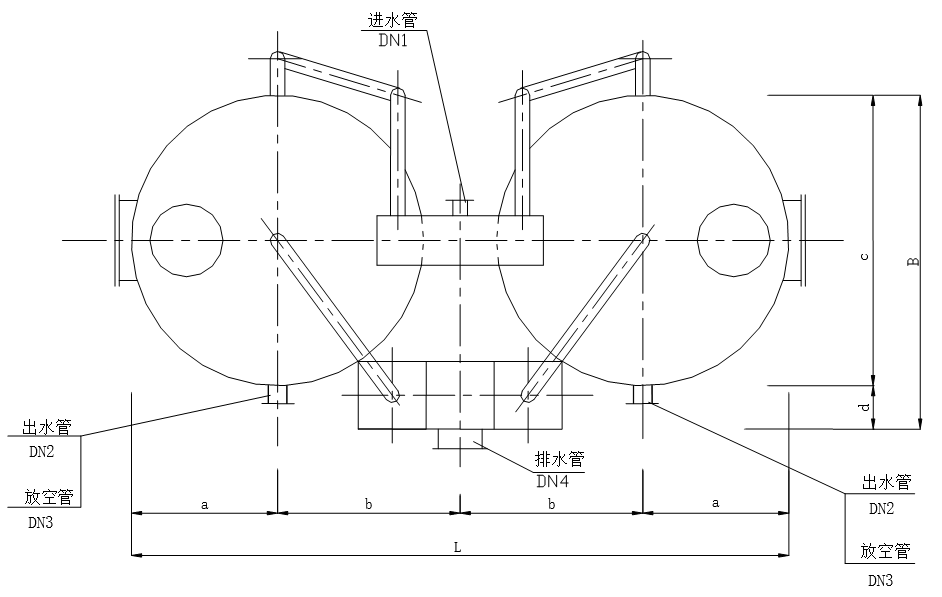

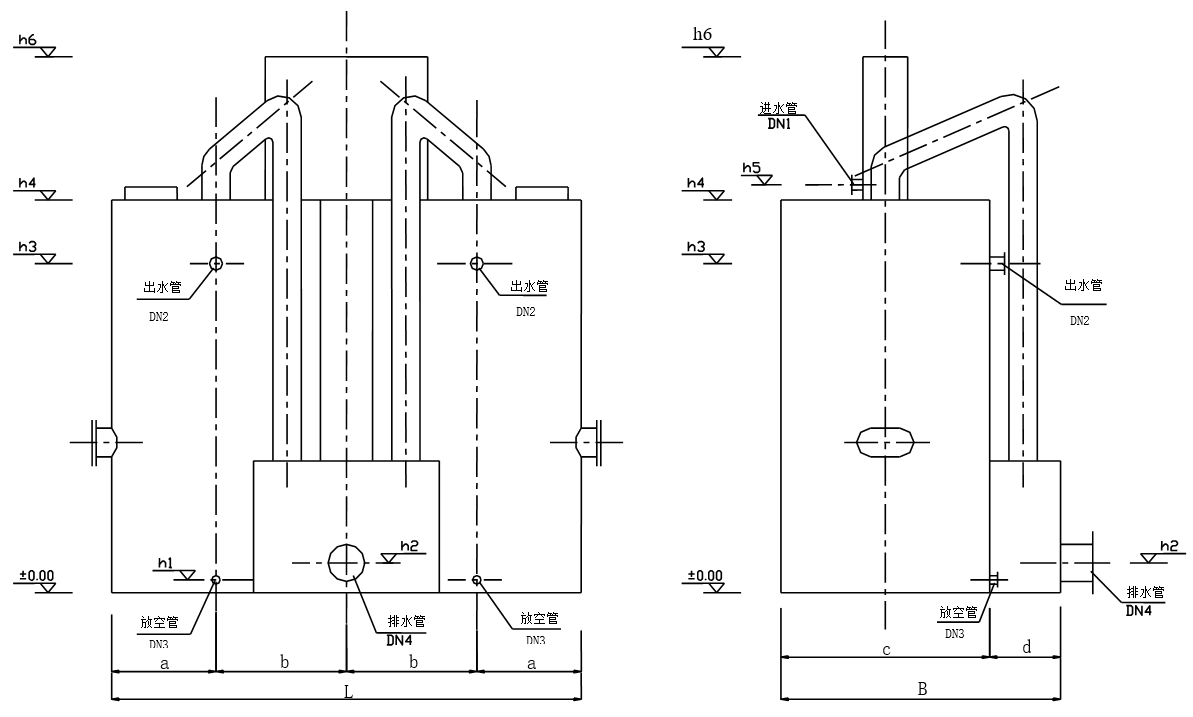

 Installation dimensions:

RS-20

RS-30

RS-40

RS-50

RS-60

RS-80

RS-100

RS-120

RS-150

RS-200

B

1850

2060

2500

2680

2860

3180

3370

3530

3700

4200

L

3600

3800

4100

4500

4900

5500

6100

6500

6000

8000

a

650

750

900

1000

1100

1250

1400

1500

1500

1750

b

1150

1150

1150

1250

1350

1500

1650

1750

1500

2250

c

1300

1500

1800

2000

2200

2500

2800

3000

3000

3500

d

550

560

700

680

660

680

570

530

700

700

h1

120

120

120

120

120

140

140

140

140

140

h2

200

220

250

280

280

310

310

360

360

360

h3

3.60

3.60

3.60

3.60

3.60

3.60

3.60

3.70

3.70

3.70

h4

4.10

4.15

4.15

4.20

4.20

4.25

4.25

4.30

4.30

4.30

h5

4.35

4.40

4.40

4.45

4.45

4.55

4.55

4.60

4.60

4.60

h6

6.05

6.10

6.10

6.15

6.15

6.20

6.20

6.25

6.25

6.25

DN1

100

125

150

150

150

200

200

250

250

300

DN2

80

100

100

125

125

150

200

200

200

250

DN3

80

80

80

80

80

100

100

100

100

100

DN4

200

250

300

350

350

400

400

500

500

500
